Sensor für transparente Objekte

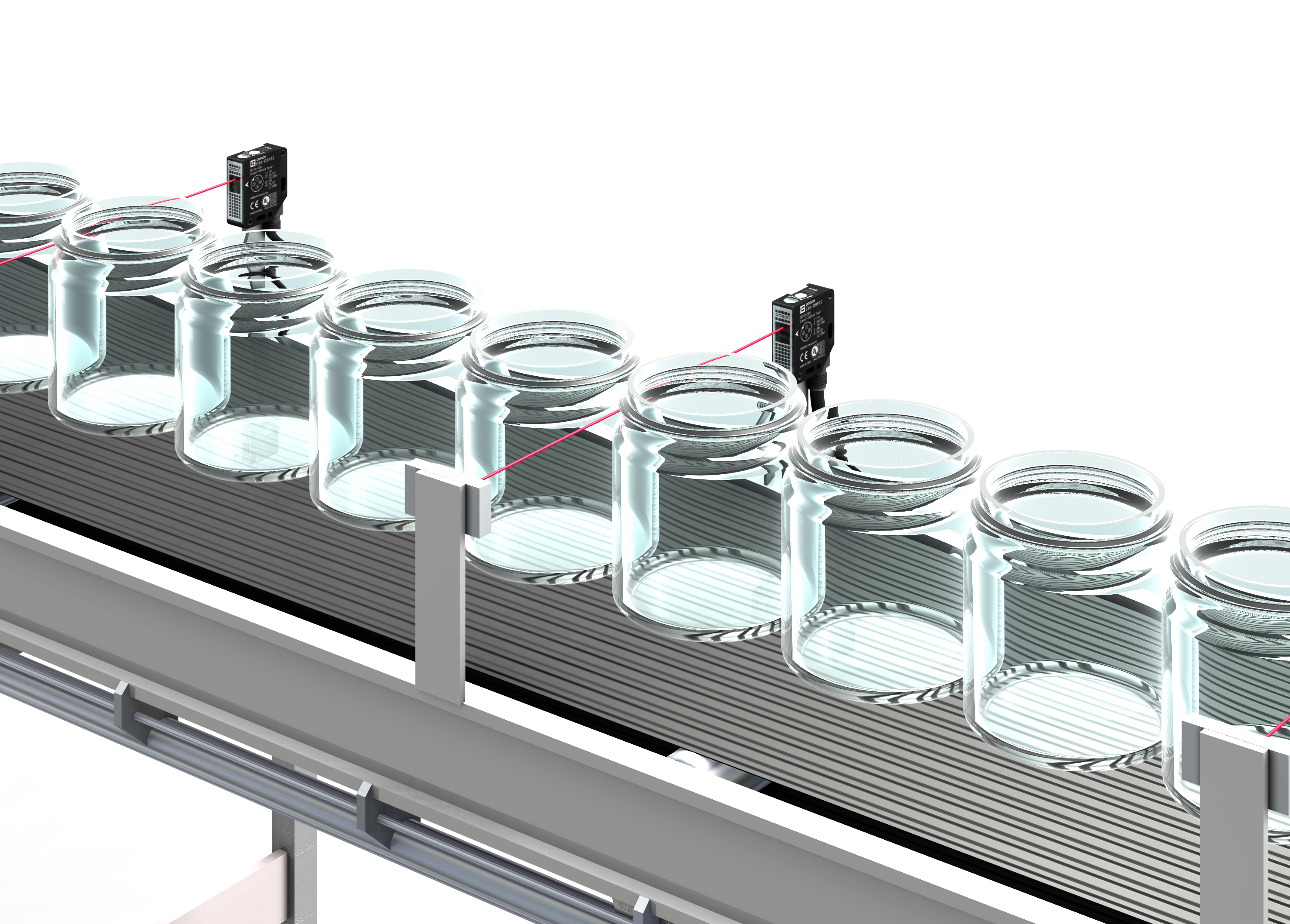

Der E3S-DB-Sensor ermöglicht die zuverlässigste Erkennung aller Arten von transparenten Objekten, wie PET-Flaschen, Glasflaschen oder transparenten Schalen.
  • Zuverlässigste Erkennung aller transparenten Objekte
  • Smart Teach ermöglicht eine schnelle Einrichtung und Festlegung optimaler Schwellenwerte
  • Typen mit engem Strahlkegel zur Erkennung kleinster Abstände
  • Bewährt in Umgebungen für die Nahrungsmittel- und Getränkeindustrie

Smart Teach

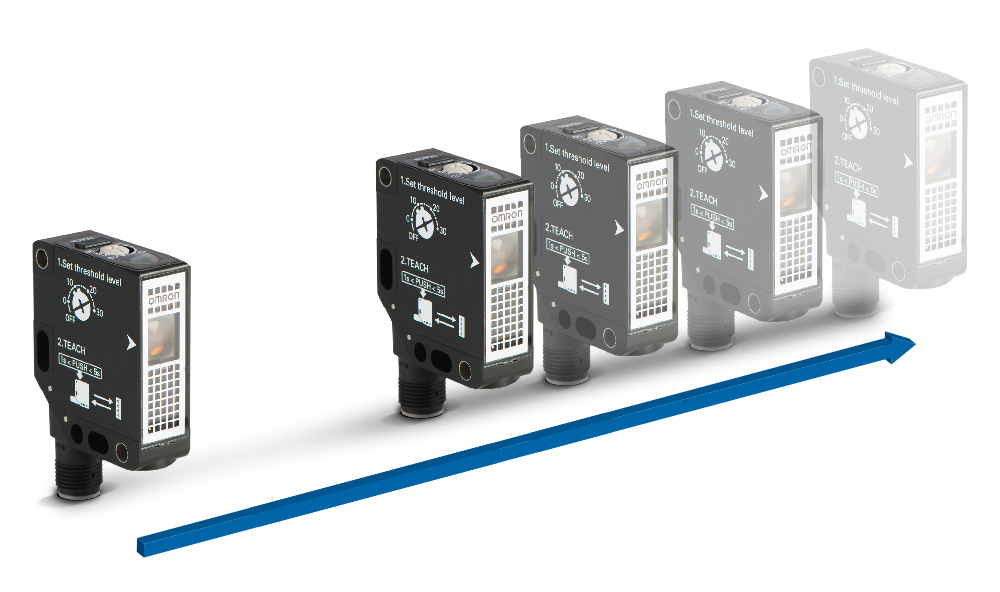

Smart Teach ermöglicht eine schnelle und einfache Einstellung optimaler Schwellenwerte
E3S-DB_Smart Teach.jpg

Enger Strahlkegel

Modelle mit engem Strahlkegel zur Erkennung von Abständen bis 3 mm

PC tool

PC Tool ermöglicht eine detaillierte Identifizierung der Dämpfungspegel eines Objekts und eine Optimierung der Sensoreinrichtung.
E3S-DB_PC tool.jpg

Automatische Kompensation

Die automatische Kompensation für Kontamination hält die Lichtintensität auch in schwierigen Umgebungen stabil.

Video-Anleitung

Der Sensor E3S-DB ermöglicht die zuverlässigste Erkennung aller Arten von transparenten Objekten wie PET-Flaschen, Glasflaschen oder transparenten Schalen. Im Video erfahren Sie, wie einfach die Installation des E3S-DB ist.
Spezifikationen & Bestellinfo

Ordering information

Sensor type

Sensing distance
recommended (max.)

Connection method

Order code1







2

NPN output

PNP output

Retro-reflective

with MSR function

Smart teach

Standard

3.5 m (4.5 m)3

-

-

¢

-

E3S-DBN11 2M

E3S-DBP11 2M

-

¢

-

-

E3S-DBN21

E3S-DBP21

-

-

-

¢

E3S-DBN31

E3S-DBP31

Narrow beam4

0.5 m (0.7 m)5

-

-

¢

-

E3S-DBN12 2M

E3S-DBP12 2M

-

¢

-

-

E3S-DBN22

E3S-DBP22

-

-

-

¢

E3S-DBN32

E3S-DBP32

Trimmer

Standard

3.5 m (4.5 m)3

-

-

¢

-

E3S-DBN11T 2M

E3S-DBP11T 2M

-

¢

-

-

E3S-DBN21T

E3S-DBP21T

-

-

-

¢

E3S-DBN31T

E3S-DBP31T

Narrow beam4

0.5 m (0.7 m)5

-

-

¢

-

E3S-DBN12T 2M

E3S-DBP12T 2M

-

¢

-

-

E3S-DBN22T

E3S-DBP22T

-

-

-

¢

E3S-DBN32T

E3S-DBP32T

Interface for PC-Monitor tool

Appearance

Type

Comment

Order Code



USB-Interface

Suitable for Windows PC

Including M12-M12 cable (2M) and USB cable

E39-USB1

Specifications



Sensing method

Retro-reflective with MSR function

Model

NPN output

E3S-DBN_1

E3S-DBN_1T

E3S-DBN_2

E3S-DBN_2T

Item

PNP output

E3S-DBP_1

E3S-DBP_1T

E3S-DBP_2

E3S-DBP_2T

Sensing distance, typ. max

0 to 4.5 m (with E39-R8)

0 to 700 mm (with E39-R21)

Sensing distance, recommended

0 to 3.5 m (with E39-R8)

0 to 500 mm (with E39-R21)

Light source (wavelength)

Red LED (624 nm)

Power supply voltage

10 to 30 VDC, including 10% ripple (p-p)

Operating modes

OUT1: L-ON/OUT2: D-ON (antivalent output)

Protection circuits

Reversed power supply polarity protection, Output short-circuit protection,
Reversed output polarity protection, Missconnection protection, Mutual interference suppression

Response time

0.5 ms

Sensitivity adjustment

SmartTeach

11-turn trimmer

SmartTeach

11-turn trimmer

Degree of protection

IEC: IP67, DIN 40050-9: IP69K

Connection method

Pre-wired cable (standard length: 2 m) or M12 4-pin connector or Pigtail (0.3 m/M12 4-pin)

Indicators

Light indicator (orange), Stability indicator (green)




1. Please order reflector separately.

2. M12-4 pin pigtail connector (Smart Click)

3. Rated with E39-R8

4. For narrow beam type please use micro-triple reflector (e.g. E39-R21)

5. Rated with E39-R21

1. Please order reflector separately.

2. M12-4 pin pigtail connector (Smart Click)

3. Rated with E39-R8

4. For narrow beam type please use micro-triple reflector (e.g. E39-R21)

5. Rated with E39-R21

Zubehör

Cable connectors



Size

Shape

Type

Features

Material

Order code

Nut

Cable





M8



PRO

3 pin

Brass (CuZn)

PVC 2 m

XS3F-M8PVC3S2M-EU

XS3F-M8PVC3A2M-EU

PUR 2 m

XS3F-M8PUR3S2M-EU

XS3F-M8PUR3A2M-EU

4pin

PVC 2 m

XS3F-M8PVC4S2M-EU

XS3F-M8PVC4A2M-EU

PUR 2 m

XS3F-M8PUR4S2M-EU

XS3F-M8PUR4A2M-EU



LITE

3 pin

Brass (CuZn)

PVC 2 m

XS3F-LM8PVC3S2M

XS3F-LM8PVC3A2M

4 pin

XS3F-LM8PVC4S2M

XS3F-LM8PVC4A2M



PRO plus

Detergent resistant

Wash-down

4 pin

Stainless steel (SUS316L)

PP1 2 m

Y92E-S08PP4S 2M

Y92E-S08PP4A 2M



PRO plus

Robotic (drag chain)

4 pin

Brass (CuZn)

Robotic PVC 2 m

XS3F-M421-402-R

XS3F-M422-402-R

Robotic PUR 2 m

Y92E-M08PUR4S2M-L

Y92E-M08PUR4A2M-L

High robotic
(drag chain & torsion)

High robotic PUR 2 m

Y92E-M08PUR4S2M-R

Y92E-M08PUR4A2M-R

M12



PRO

3 wire

Brass (CuZn)

PVC 2 m

XS2F-M12PVC3S2M-EU

XS2F-M12PVC3A2M-EU

PUR 2 m

XS2F-M12PUR3S2M-EU

XS2F-M12PUR3A2M-EU

4 wire

PVC 2 m

XS2F-M12PVC4S2M-EU

XS2F-M12PVC4A2M-EU

PUR 2 m

XS2F-M12PUR4S2M-EU

XS2F-M12PUR4A2M-EU

5 wire

PVC 2 m

XS2F-M12PVC5S2M-EU

XS2F-M12PVC5A2M-EU

PUR 2 m

XS2F-M12PUR5S2M-EU

XS2F-M12PUR5A2M-EU



LITE

3 wire

Brass (CuZn)

PVC 2 m

XS2F-LM12PVC3S2M

XS2F-LM12PVC3A2M

4 wire

XS2F-LM12PVC4S2M

XS2F-LM12PVC4A2M



PRO plus

LED (power and output LED, PNP)

3 wire

Nickel plated brass

PVC 2 m

-

XS2F-M12PVC3A2MPLED

4 wire

-

XS2F-M12PVC4A2MPLED

3 wire

PUR 2 m

-

XS2F-M12PUR3A2MPLED

4 wire

-

XS2F-M12PUR4A2MPLED



PRO plus

Detergent resistant

Wash-down

4 wire

Stainless steel (SUS316L)

PP1 2 m

Y92E-S12PP4S 2M

Y92E-S12PP4A 2M



PRO plus

105°C

Heat resistant

4 wire

Stainless steel (SUS316L)

Heat resistant PVC 2 m

XS2F-E421-D80-E

XS2F-E422-D80-E



Twist & click

4 wire

Nickel plated Zinc

PVC 2 m

XS5F-D421-D80-F

XS5F-D422-D80-F

PUR 2 m

XS5F-D421-D80-P

XS5F-D422-D80-P



PRO plus

Robotic (drag chain)

4 wire

Brass (CuZn)

Robotic PVC 2 m

XS2F-D421-D80-F

XS2F-D422-D80-F

Robotic PUR 2 m

Y92E-M12PUR4S2M-L

Y92E-M12PUR4A2M-L

High robotic
(drag chain & torsion)

High grade robotic PUR 2 m

Y92E-M12PUR4S2M-R

Y92E-M12PUR4A2M-R





8 pin

8 wire shielded cable

Brass (CuZn)

Shielded PUR 2m

Y92E-M12PURSH8S2M-L

-

Fiber amplifier (E3X) connector



Fiber amplifier connectors

Special fiber connector - 4 wire

PBT

PVC 2 m

E3X-CN21



Special fiber connector + M8 plug

Plug: Zinc diecast

PVC 30 cm with M8
4-pin plug

E3X-CN21-M3J-2 0.3M

Special fiber connector + M12 plug

PVC 30 cm with M12
4-pin plug

E3X-CN21-M1J 0.3M



Size

Shape

Type

Features

Material

Order code

Nut

Cable





M12



IDC (Insulation Displacement Contact)

Fast and easy IDC pressure-welded assembly

Brass

n.a.

XS5G-D418

XS5C-D418

One connector for cable diameters of 3 mm to 8 mm

IP 67 for waterproof connection

Smartclick connection

M8/M12



Confection-able

Plugs and connectors for self assembly

Brass

n.a.

XS2G, XS2C

Y92E_conf

M12



Field I/0 boxes

Direct wiring or DeviceNet communi-cation

-

XW3B, DRT2

M8/M12



T-connectors, covers, accessories and extended wiring portfolio

n.a.

-

XS2R, XS3R, XY2F, ...

1. PP - polypropylene
