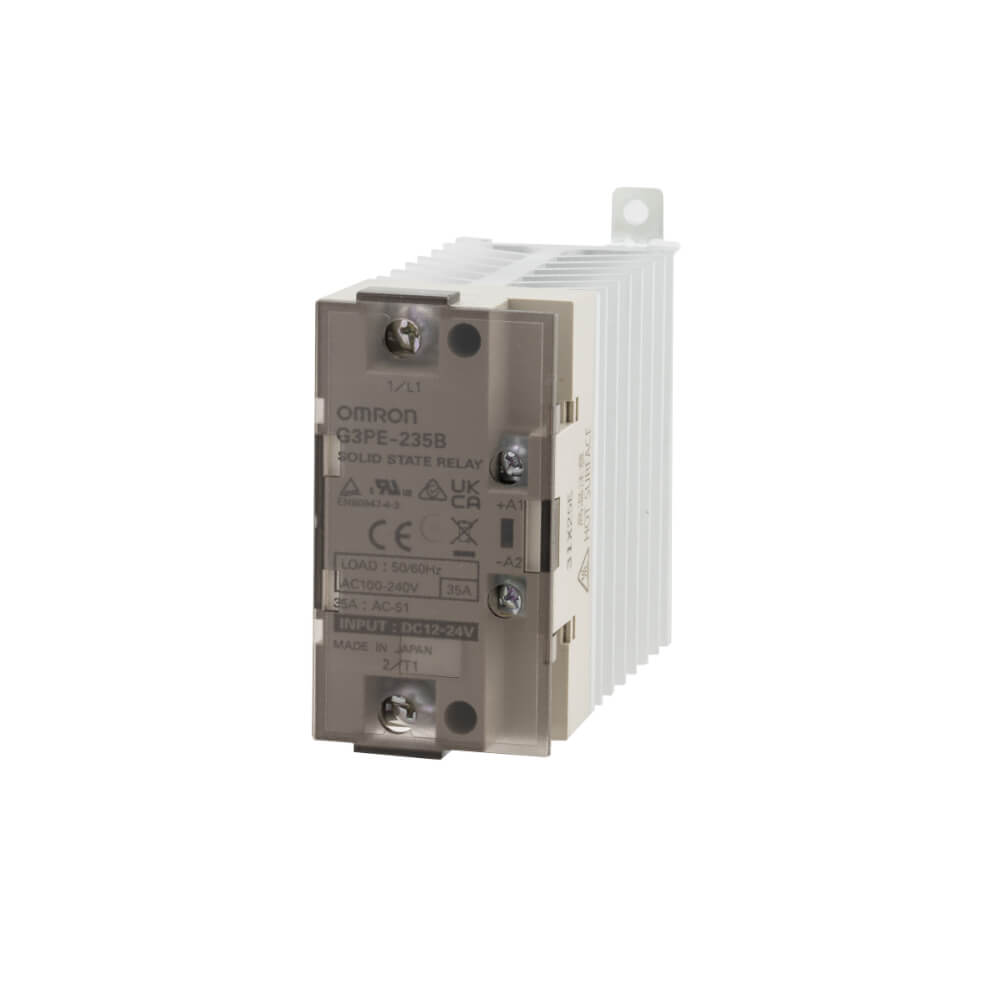

G3PE-235B 12-24VDC
Industrie Relais - Halbleiterrelais mit integriertem Kühlkorper - Last: 35A 75…264V AC - Ansteuerung: 9,6…30V DC - 1-phasig - Null-Punkt schaltend - DIN-Schienen/Wandmontage
Technische Daten
| Application | ON/OFF control |
| Number of phases | 1 |
| Number of poles | 1 |
| Mounting method | DIN rail/screw |
| Terminal | Screw |
| Complete with socket | |
| LED indicator | |
| Rated operational voltage, AC | 100-240 V |
| Operating voltage range, AC | 75-264 V |
| Rated operation current Ie at AC-1 | 35 A |
| Permissible I²t value | 1260 A²s |
| Applicable heater capacity (AC1: resistive load) | 7 kW |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 44.5 mm |
| Product Depth (unpacked) | 100 mm |
| Supply voltage DC | 12-24 V |
| Control current max. | 10 mA |
| Must operate voltage max. | 9.6 V |
| Must release voltage min. | 1 V |
| Maximum operating temperature | 80 °C |
| Minimum operating temperature | -30 °C |
| Isolation | Phototriac |
| Switching at zero-crossing |
